The KBOC_BB1 provides card-edge connectivity for the powerful KBOC OMAP35xx System Module. While many hardware configuration options are possible with the KBOC module, the BB1 captures a typical set of hardware functions useful in a variety of applications.

The KBOC module was designed to be completely compatible with the Beagle Board. The BB1 adds some features not found on the Beagle Board - such as on-board Ethernet jack, VGA display output, USB host port power, and direct support for a LCD panel. The original 10-pin serial header remains, but is also wired to a standard 9-pin DB9 connector to simplify the serial port interface. Three display options are available: VGA, DVI, or LCD. The display signals are also wired to large, 0.100" through-hole headers. This greatly simplifies adding new display interfaces.

The display options, low power consumption, fanless operation, small size, audio support, and low cost of ownership make the system ideal for desktop-level computing, digital/remote signage, facility monitoring, human-machine interfaces, and thin-client applications.

Please see the demonstration videos for the KBOC_BB1 (see "More Information").

See the User Information document for detailed information.

Technical Specs

  • RoHS Compliant
  • Texas Instruments OMAP35xx
    Dual-Issue, ARM Cortex-A8 @ 600MHz
    64x+DSP @ 430MHz (based on processor selection)
    Peak MMACS 3440
    64-Ch EDMA,32-Bit Channel SDMA
  • 256 MB DDR (configurable)
  • 512 MB NAND (configurable)
  • SD/MMC
  • 10/100 Mbps RJ45 Ethernet jack
  • 2 x USB 2.0 FS USB host ports
  • 1 x RS232 serial port
  • 2 x LVTTL serial port (headers)
  • 1 x SPI/GPIO port (LVTTL headers)
  • DVI display output (optional) at connector
  • VGA display output (optional) at connector
  • LCD display output (optional) at connector
  • Display signals also at 0.100" headers
  • TV/S-Video output signals at headers
  • Audio line-out, line-in, mic-in (optional) at connectors
  • 12 x 32-Bit GP Timers
  • 2 x 32-Bit WD
  • Display Graphics accelerator (based on processor selection)
  • 5VDC input voltage at power jack
  • 7" x 4.5"

Development kits

The KBOC_BB1 is available now at our on-line store.

The KBOC_BB1 KIT is available now at our on-line store including power supply, serial cable, and pre-formatted Angstrom 4GB SD card.

Pricing Information


The KBOC_BB1 is offered for a limited time at the special introductory price of $249.99*. The package includes OMAP3530 System Module, 256MB RAM, 512 MB NAND, and the KBOC_BB1 with display output connector. Additional display outputs are optional.

* Limit one per customer

Want to make changes to the KBOC, KBOC_BB1, or need custom base boards? We design and manufacture boards modified to your specs. Please contact us for more information.

More Information

KBOC_BB1 User Information

KBOC_BB1 Schematic

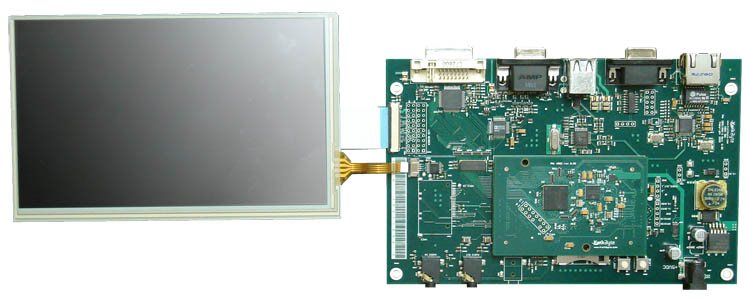

LCD Connection Picture
